This class defines the interface for generic data file access that all of the BDS data converters share. More...

#include <BdsDataFile.h>

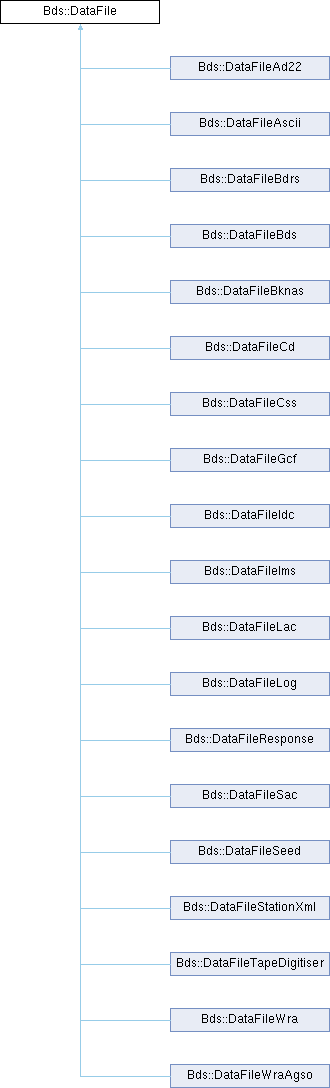

Inheritance diagram for Bds::DataFile:

Public Types
enum	DataOrder { DataOrderUnknown , DataOrderAll , DataOrderSample , DataOrderChannel }

enum	Features { FeatureNone = 0x00 , FeatureCanWrite = 0x01 , FeatureCanRead = 0x02 }

enum	WriteOptionsList { WriteOptionNone = 0x00 , WriteOptionSensorData = 0x01 , WriteOptionNoMetadata = 0x02 }

enum	ReadOptionsList { ReadOptionNone = 0x00 , ReadOptionValidate = 0x01 , ReadOptionFileNameProcess = 0x02 , ReadOptionFixCorruptions = 0x04 , ReadOptionReorder = 0x08 , ReadOptionDeleteDuplicates = 0x10 , ReadOptionInfoExtra = 0x20 , ReadOptionIgnoreSamplerate = 0x40 , ReadOptionPrintBlocks = 0x80 , ReadOptionFixSampleRate = 0x100 }

Public Member Functions
	DataFile ()

virtual	~DataFile ()

virtual void	init ()
	Initialise.

virtual BError	open (BString fileName, BString mode)
	Open the file for read or write.

virtual BError	close ()
	Close the file.

virtual BError	setFormat (BString format)
	Set the sub-format.

virtual BString	getFileName ()
	Return the file name.

virtual DataOrder	getDataOrder ()
	Get the expected order of writing data, by sample or by channel.

virtual int	getFeatures ()
	Get bitmask of supported features.

virtual BString	getFixesInfo ()
	Get readable list of fixes that can be applied to faulty data files.

void	getNotices (BStringList &notices)
	Get a list of any notices.

virtual BError	setInfo (const DataInfo &dataInfo, const ChannelInfos &channelInfos, WriteOptionsList options=WriteOptionNone)
	Set information on data for write.

virtual BError	start (BUInt channel, BUInt segment)
	Start writing next segment of data.

virtual BError	writeData (const DataBlock &data)
	Write a block of data.

virtual BError	end ()
	End write segment.

virtual BError	flush ()
	Flush data to disk.

virtual BError	fileNameProcess ()
	Parse the file name for a date/time.

virtual BError	getFormat (BString &format)
	Get sub-format.

virtual BError	getInfo (DataInfo &dataInfo, DataFileOptions options, BList< DataError > &errors)
	Get info on data.

virtual BError	seekBlock (BUInt32 channel, BUInt segment, BTimeStamp time, BUInt32 &blockNumber, BUInt64 &sampleNumber, DataBlock &data)
	Find requested block on given channel given a time.

virtual BError	readData (BUInt32 channel, BUInt segment, BUInt32 blockNumber, DataBlock &dataBlock)
	Read a block.

virtual BError	getMetaData (ChannelInfos &channelInfos, BUInt32 options, BList< DataError > &errors)
	Return all known MetaData in the file.

void	dataErrorFixup (const DataInfo &dataInfo, BList< DataError > &errors)
	Fixup data errors, mainly start/end times to be within data.

BInt64	timeCompare (BTimeStamp t1, BTimeStamp t2, BUInt diff)
	Compare timestamps with a margin.

int	duplicateCheck (const DataBlock &data1, const DataBlock &data2, BUInt channel=0)
	Check if blocks are duplicates.

BUInt64	getFilePosition ()

Static Public Member Functions
static DataFormats	getFormats ()
	Get list of supported formats.

Protected Attributes
BString	ofileName

BString	omode

BTimeStamp	ofileNameTime

BFile	ofile

BString	oformat

BStringList	onotices

Detailed Description

This class defines the interface for generic data file access that all of the BDS data converters share.

Member Enumeration Documentation

◆ DataOrder

enum Bds::DataFile::DataOrder

Enumerator
DataOrderUnknown
DataOrderAll
DataOrderSample
DataOrderChannel

◆ Features

enum Bds::DataFile::Features

Enumerator
FeatureNone
FeatureCanWrite
FeatureCanRead

◆ WriteOptionsList

enum Bds::DataFile::WriteOptionsList

Enumerator
WriteOptionNone
WriteOptionSensorData
WriteOptionNoMetadata

◆ ReadOptionsList

enum Bds::DataFile::ReadOptionsList

Enumerator
ReadOptionNone
ReadOptionValidate
ReadOptionFileNameProcess
ReadOptionFixCorruptions
ReadOptionReorder
ReadOptionDeleteDuplicates
ReadOptionInfoExtra
ReadOptionIgnoreSamplerate
ReadOptionPrintBlocks
ReadOptionFixSampleRate

Constructor & Destructor Documentation

◆ DataFile()

Bds::DataFile::DataFile ( )

◆ ~DataFile()

Bds::DataFile::~DataFile ( )

virtual

Member Function Documentation

◆ init()

void Bds::DataFile::init ( )

virtual

Initialise.

◆ open()

BError Bds::DataFile::open	(	BString	fileName,
		BString	mode
	)

virtual

Open the file for read or write.

Parameters

fileName	The filename to open. Can be a full path or relative path to the current working directory
mode	The open mode. Can be "r" or "w".

Opens a file of the gievn file format

Reimplemented in Bds::DataFileAscii, Bds::DataFileBds, Bds::DataFileBknas, Bds::DataFileIms, Bds::DataFileLog, and Bds::DataFileTapeDigitiser.

◆ close()

BError Bds::DataFile::close ( )

virtual

Close the file.

Reimplemented in Bds::DataFileBds, Bds::DataFileIms, and Bds::DataFileSeed.

◆ setFormat()

BError Bds::DataFile::setFormat ( BString format )

virtual

Set the sub-format.

Parameters

format The data files format

When a data converter support multiple sub-format, this chooses the one to use.

Reimplemented in Bds::DataFileAscii, Bds::DataFileBds, Bds::DataFileLog, Bds::DataFileWra, and Bds::DataFileSeed.

◆ getFileName()

BString Bds::DataFile::getFileName ( )

virtual

Return the file name.

◆ getDataOrder()

DataFile::DataOrder Bds::DataFile::getDataOrder ( )

virtual

Get the expected order of writing data, by sample or by channel.

Reimplemented in Bds::DataFileAd22, Bds::DataFileAscii, Bds::DataFileBdrs, Bds::DataFileBds, Bds::DataFileCd, Bds::DataFileCss, Bds::DataFileGcf, Bds::DataFileIms, Bds::DataFileLac, Bds::DataFileLog, Bds::DataFileWra, Bds::DataFileWraAgso, and Bds::DataFileSeed.

◆ getFeatures()

BError Bds::DataFile::getFeatures ( )

virtual

Get bitmask of supported features.

Returns a bit mask of the data converters featurs from the set FeatureCanWrite = 0x01 and FeatureCanRead = 0x02

Reimplemented in Bds::DataFileAd22, Bds::DataFileAscii, Bds::DataFileBdrs, Bds::DataFileCd, Bds::DataFileCss, Bds::DataFileGcf, Bds::DataFileIdc, Bds::DataFileIms, Bds::DataFileLac, Bds::DataFileLog, Bds::DataFileResponse, Bds::DataFileSac, Bds::DataFileStationXml, Bds::DataFileWra, Bds::DataFileWraAgso, and Bds::DataFileSeed.

◆ getFixesInfo()

BError Bds::DataFile::getFixesInfo ( )

virtual

Get readable list of fixes that can be applied to faulty data files.

returns a human readable string describing the fixes to currupted files this data converter can implement when the ReadOptionFixCorruptions option is used

Reimplemented in Bds::DataFileAd22, Bds::DataFileBdrs, Bds::DataFileCd, Bds::DataFileGcf, Bds::DataFileLac, Bds::DataFileWra, and Bds::DataFileSeed.

◆ getNotices()

void Bds::DataFile::getNotices ( BStringList & notices )

Get a list of any notices.

◆ setInfo()

BError Bds::DataFile::setInfo	(	const DataInfo &	dataInfo,
		const ChannelInfos &	channelInfos,
		WriteOptionsList	options = `WriteOptionNone`
	)

virtual

Set information on data for write.

Parameters

dataInfo	Info on the Sensor data channels to be written
channelInfos	The metadata for the data channels
options	A bitmask of options including: WriteOptionSensorData, WriteOptionNoMetadata WriteOptionSensorData: Writes Sensor data to the file WriteOptionNoMetadata: Disable the writing of Metadata

This function provides the information to create and write to a data file of this given format.

Reimplemented in Bds::DataFileIdc, Bds::DataFileResponse, Bds::DataFileStationXml, Bds::DataFileIms, Bds::DataFileSac, Bds::DataFileAscii, Bds::DataFileBds, Bds::DataFileBknas, Bds::DataFileLog, and Bds::DataFileSeed.

◆ start()

BError Bds::DataFile::start	(	BUInt	channel,
		BUInt	segment
	)

virtual

Start writing next segment of data.

Parameters

channel	The Channel number, 0 for all channels if multiple channel
segment	The data segment number

This starts writing a contiguous time segment of data to the file. It might write a section header etc depending of the file format

Reimplemented in Bds::DataFileAscii, Bds::DataFileIms, Bds::DataFileLog, and Bds::DataFileSeed.

◆ writeData()

BError Bds::DataFile::writeData ( const DataBlock & data )

virtual

Write a block of data.

Parameters

data	A block of data

This writes a block of data to the file

Reimplemented in Bds::DataFileAscii, Bds::DataFileBds, Bds::DataFileBknas, Bds::DataFileIms, Bds::DataFileLog, and Bds::DataFileSeed.

◆ end()

BError Bds::DataFile::end ( )

virtual

End write segment.

This defines the end of a data segment.

Reimplemented in Bds::DataFileAscii, Bds::DataFileIms, Bds::DataFileLog, and Bds::DataFileSeed.

◆ flush()

BError Bds::DataFile::flush ( )

virtual

Flush data to disk.

Makes sure all of the files contents is flushed from RAM to the disk.

Reimplemented in Bds::DataFileBds.

◆ fileNameProcess()

BError Bds::DataFile::fileNameProcess ( )

virtual

Parse the file name for a date/time.

◆ getFormat()

BError Bds::DataFile::getFormat ( BString & format )

virtual

Get sub-format.

Parameters

format The returned format

Returns the name of the sub-format in use

◆ getInfo()

BError Bds::DataFile::getInfo	(	DataInfo &	dataInfo,
		DataFileOptions	options,
		BList< DataError > &	errors
	)

virtual

Get info on data.

Parameters

dataInfo	Info on the Sensor data channels to be written
options	A bitmask of options including: ReadOptionValidate = 0x01, ReadOptionFileNameProcess = 0x02, ReadOptionFixCorruptions = 0x04, ReadOptionReorder = 0x08, ReadOptionDeleteDuplicates = 0x10, ReadOptionInfoExtra = 0x20, ReadOptionIgnoreSamplerate = 0x40, ReadOptionPrintBlocks = 0x80, ReadOptionFixSampleRate = 0x100
errors	Returns a list of errors and/or warnings ReadOptionValidate: performs data file validation ReadOptionFileNameProcess: Validate the filename for particular file formats ReadOptionFixCorruptions: Fix know file curruptions ReadOptionReorder: Re-order blocks into time order ReadOptionDeleteDuplicates: Delete duplicate blocks where they are completely duplicate in startTime and data. ReadOptionInfoExtra: Read the extra string Metadata information specific to the format ReadOptionIgnoreSamplerate: Ignore samplerate differences ReadOptionPrintBlocks: debug option to print information on the blocks to stdout ReadOptionFixSampleRate: Fors specific formats fixe curruptions in the samplerate gieven

This function scans the file and returns detailed Metadata from the blocks in the file.

Reimplemented in Bds::DataFileAd22, Bds::DataFileBdrs, Bds::DataFileBds, Bds::DataFileCd, Bds::DataFileCss, Bds::DataFileGcf, Bds::DataFileLac, Bds::DataFileLog, Bds::DataFileTapeDigitiser, Bds::DataFileWra, Bds::DataFileWraAgso, and Bds::DataFileSeed.

◆ seekBlock()

BError Bds::DataFile::seekBlock	(	BUInt32	channel,
		BUInt	segment,
		BTimeStamp	time,
		BUInt32 &	blockNumber,
		BUInt64 &	sampleNumber,
		DataBlock &	data
	)

virtual

Find requested block on given channel given a time.

Parameters

channel	The channel number. 0 for all channels.
segment	The segment number. 0 for all segments
time	The time of a sample to search for
blockNumber	The returned block number
sampleNumber	The sample number inside the block (based on sampleRate)
data	The matched DataBlock

This seeks for the a DataBlock in the file that contains a sample for the time provided. If channel is other than 0 then it seeks for a DataBlock for the given channel. If the data is sample multiplexed a Channel number of 0 can be given which will return the location of a dataBlock containing all of the Channels. If Segment is 0 then the block number returned is referenced to the start of the set of files. If a particular segment number is given then the seek and the returned block number is within that segment.

Reimplemented in Bds::DataFileBds.

◆ readData()

BError Bds::DataFile::readData	(	BUInt32	channel,
		BUInt	segment,
		BUInt32	blockNumber,
		DataBlock &	dataBlock
	)

virtual

Read a block.

Parameters

channel	The channel number. 0 Means all channels
segment	The segment number. 0 Means all segments
blockNumber	The block number. This starts from 0.
dataBlock	The returned DataBlock

This function is used to read a data block from the file.

Reimplemented in Bds::DataFileAd22, Bds::DataFileBdrs, Bds::DataFileCd, Bds::DataFileCss, Bds::DataFileGcf, Bds::DataFileLac, Bds::DataFileLog, Bds::DataFileTapeDigitiser, Bds::DataFileWra, Bds::DataFileWraAgso, Bds::DataFileSeed, and Bds::DataFileBds.

◆ getMetaData()

BError Bds::DataFile::getMetaData	(	ChannelInfos &	channelInfos,
		BUInt32	options,
		BList< DataError > &	errors
	)

virtual

Return all known MetaData in the file.

Parameters

channelInfos	The Metadata in the file is returned in this
options	This operators similarly to the getInfo options although some features are not relevent
errors	Returns a list of errors and/or warnings

This function is similar to getInfo except that it returns the list of Channel metadata in the file if any. Only certain formats can provide this.

Reimplemented in Bds::DataFileIdc, Bds::DataFileIms, Bds::DataFileResponse, Bds::DataFileSac, Bds::DataFileStationXml, and Bds::DataFileSeed.

◆ dataErrorFixup()

void Bds::DataFile::dataErrorFixup	(	const DataInfo &	dataInfo,
		BList< DataError > &	errors
	)

Fixup data errors, mainly start/end times to be within data.

◆ timeCompare()

BInt64 Bds::DataFile::timeCompare	(	BTimeStamp	t1,
		BTimeStamp	t2,
		BUInt	diff
	)

Compare timestamps with a margin.

◆ duplicateCheck()

int Bds::DataFile::duplicateCheck	(	const DataBlock &	data1,
		const DataBlock &	data2,
		BUInt	channel = `0`
	)

Check if blocks are duplicates.

◆ getFilePosition()

BUInt64 Bds::DataFile::getFilePosition ( )

◆ getFormats()

DataFormats Bds::DataFile::getFormats ( )

static

Get list of supported formats.

Member Data Documentation

◆ ofileName

BString Bds::DataFile::ofileName

protected

◆ omode

BString Bds::DataFile::omode

protected

◆ ofileNameTime

BTimeStamp Bds::DataFile::ofileNameTime

protected

◆ ofile

BFile Bds::DataFile::ofile

protected

◆ oformat

BString Bds::DataFile::oformat

protected

◆ onotices

BStringList Bds::DataFile::onotices

protected

The documentation for this class was generated from the following files:

/src/blacknest/bds/bds/bdsDataLib/BdsDataFile.h
/src/blacknest/bds/bds/bdsDataLib/BdsDataFile.cpp
/src/blacknest/bds/bds/doc/bdsApi-extra.dox

Account

Public Types

Public Member Functions

Static Public Member Functions

Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ DataOrder

◆ Features

◆ WriteOptionsList

◆ ReadOptionsList

Constructor & Destructor Documentation

◆ DataFile()

◆ ~DataFile()

Member Function Documentation

◆ init()

◆ open()

◆ close()

◆ setFormat()

◆ getFileName()

◆ getDataOrder()

◆ getFeatures()

◆ getFixesInfo()

◆ getNotices()

◆ setInfo()

◆ start()

◆ writeData()

◆ end()

◆ flush()

◆ fileNameProcess()

◆ getFormat()

◆ getInfo()

◆ seekBlock()

◆ readData()

◆ getMetaData()

◆ dataErrorFixup()

◆ timeCompare()

◆ duplicateCheck()

◆ getFilePosition()

◆ getFormats()

Member Data Documentation

◆ ofileName

◆ omode

◆ ofileNameTime

◆ ofile

◆ oformat

◆ onotices
